Light Commercial Q Round flow Cassette – Aux Air Conditioner Cyprus

Q Round Flow Cassette

Light Commercial / Multi Series Series

Available capacities (BTU)

360° Comfort: Experience Total Airflow Control

Quiet and efficient, AUX cassette units work perfectly well in suspended interior ceilings of offices, conference rooms, restaurants and other commercial premises. Thanks to 360 degrees airﬂow technology and quick cooling cooling/ heating function, they can provide a comfortable environment in every corner of an airconditioned room. Can be connected to single outdoor unit or Multi system.

360° Airflow

AUX Roundflow cassettes ensure even temperature distribution with additional corner outlets, delivering 360° of cooled air, ideal for effectively air-conditioning rooms, including large areas, for maximum user comfort.

Long Distance Airflow

The Cassette has added static pressure for long airflow delivery and is capable of being used in spaces up to 4m in floor height

Fresh Air Intake

The cassette unit accepts a fresh air inlet allowing it to draw fresh air from outside, for improved comfort and health.

Built in drain pump

The built-in drain pump can lift condensing water up to 1200mm high from the drainage pan.

Easy Maintenance

Easy removal of fan cover, fan axel and the fan motor for cleaning and maintenance of essential equipment.

New Water Pan Design

The cassette-type water pan has been enhanced with a 1.5mm thick plastic construction, featuring anticollision, anti-leakage properties and increased water storage capacity by 30% for improved durability and reliability.

Enhanced Structural Bionic Design

The chassis incorporates an enhanced structural bionic design, significantly diminishing self-vibration and achieving a noise reduction of 15%.

Product Downloads

Download all available details related to this specific product

Specifications

Energy Labels

Eurovent Certficates

User Manual

Remote Control Manual

Paired With +

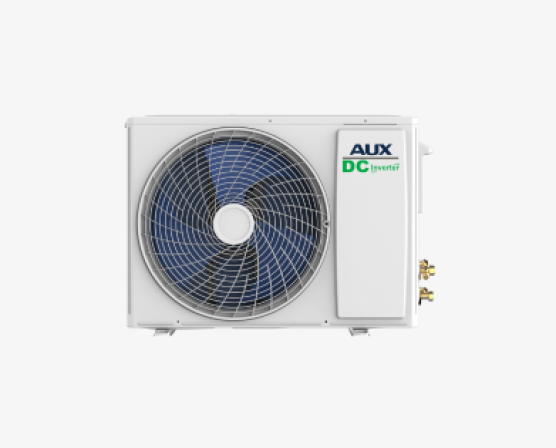

Light Commercial Universal Match Outdoor

Capacity Range: 12K/ 18K/ 24K/ 36K/ 48K BTU
Key Features:
High Quality Compressor
Triple Guard Protection
High Energy Efficiency

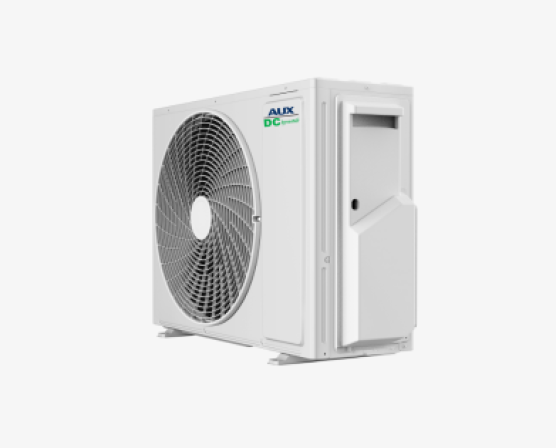

Light Commercial Multi Split Outdoor Unit

Capacity Range:
1 Drives 2 (14000 BTU), 1 Drives 3 (18000 BTU), 1 Drives 4 (21000 BTU), 1 Drives 4 (27000 BTU), 1 Drives 5 (36000 BTU), 1 Dries 5 (42000 BTU)
Key Features:
Connect multiple indoor units to 1 outdoor Unit

Controllers +

Remote Controller - Type T Model

The elegant multifunctional Type T controller

Remote Controller - Type L Model

The elegant multifunctional Type L controller

Remote Controller - Type H Model

Wired Controller - XK-05 Model

The elegant multifunctional wired controller

Wired Controller - XK-06 Model

The elegant multifunctional weekly timer wired controller

Central Controller - CCM-01

The elegant multifunctional central controller

Voice Controller Module

Control your AC with you voice

AC Freedom Smartphone App

Control your AC from anywhere in the world

Central Control - BMS Gateway

Control all your building equipment from a single system

Central Control - MODBUS Gateway

The AUX Modbus Adapter enables integration of AUX HVAC units with Modbus-compatible building automation systems, allowing centralized control, monitoring, and remote management of climate settings via standard communication protocols. Ideal for smart buildings and energy management applications.

Full Feature List

See the full list of included features
