ARV Systems

VRF Systems - Outdoor Units

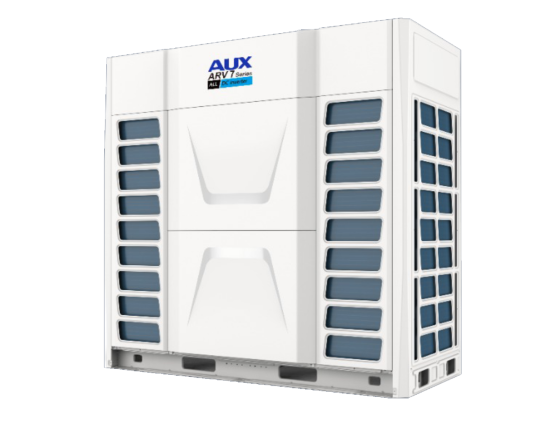

ARV 7 Modular Systems

Capacity Range:
Individual
25/ 28/ 33/ 40/ 45/ 50/ 56/ 61.5/ 68/ 73/ 78.5/ 85/ 90/ 95/ 101kW
Modular
Combine to max 404kW

Key Features:
All DC Inverter Operation
Long Distance Piping
Auto Commissioning

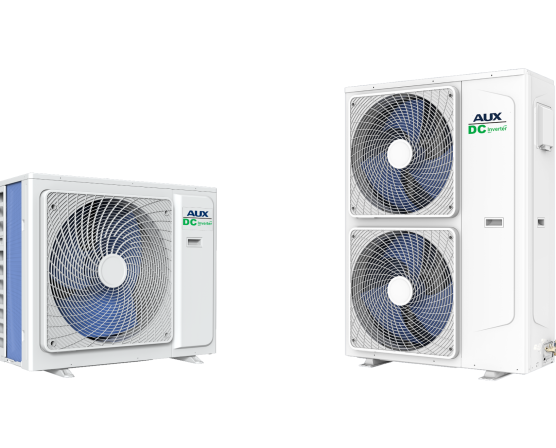

ARV Mini VRF Systems

Capacity Range:
8/ 10/ 12/ 14/ 16kW

Key Features:
All DC Operation
7 Level Power Limit
Remote Moinitoring

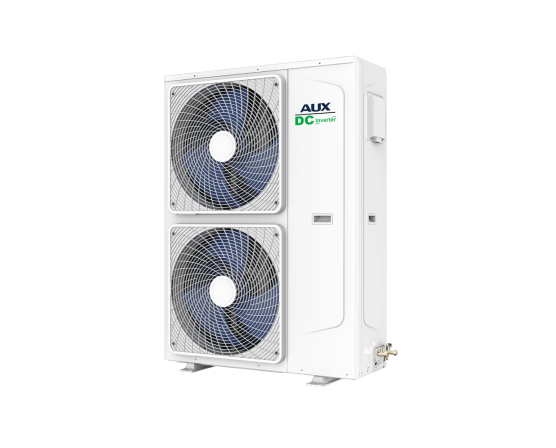

ARV Mini VRF Modular Systems

Capacity Range:
Individual
25/ 28/ 33kW
Modular
Combine to max 100kW

Key Features:
185mm Height
10 - 30 Pa adjustable
Wired Controller comes standard

VRF Systems - Indoor Units

Q Roundflow Cassette

Capacity Range:
2.8/ 3.6/ 4.5/ 5.6/ 7.1/ 9/ 10/ 11.2/ 12.5/ 14/ 15kW

Key Features:
360 degrees airflow
Easy Maintenance
Water Pump Included

Y Roundflow Cassette

Capacity Range:
2.8/ 3.6/ 4.5/ 5.6/ 7.1/ 9/ 10/ 11.2/ 12.5/ 14/ 15kW

Key Features:
360 degrees airflow
Easy Maintenance
Water Pump Included

1-Way Cassette

Capacity Range:
2.8/ 3.6/ 4.5/ 5.6/ 7.1kW

Key Features:
Single direction airflow
Easy Maintenance
Water Pump Included

2-Way Cassette

Capacity Range:
2.8/ 3.6/ 4.5/ 5.6/ 7.1kW

Key Features:
Dual direction airflow
Easy Maintenance
Water Pump Included

Low Static Duct

Capacity Range:
2.2/ 2.8/ 3.6/ 4.5/ 5.6/ 7.1kW

Key Features:
185mm Height
10 - 30 Pa adjustable
Wired Controller comes standard
DC Fan Motor

Mid Static Duct

Capacity Range:
3.6/ 4.5/ 5.6/ 7.1/ 9/ 10/ 11.2/ 12.5/ 14/ 15kW

Key Features:
245mm Height
0 - 160 Pa adjustableSuper Ionizer
Wired Controller comes standard
DC Fan Motor

High Static Duct

Capacity Range:
22/ 28kW

Key Features:
Automatic ESP Regulation
30 - 250 Pa adjustable
Easy Maintenance
DC Fan Motor

Fresh Air System

Capacity Range:
22/ 28/ 45/ 56kW

Key Features:
Easy Maintenance
30 - 250 Pa adjustable
Easy Maintenance
DC Fan Motor

Ceiling & Floor

Capacity Range:
3.6/ 4.5/ 5.6/ 7.1/ 9/ 10/ 11.2/ 12.5/ 14/ 15kW

Key Features:
HIgh Quality Compressor
Triple Guard Protection
High Energy Efficiency
DC Fan Motor
